Material: （PP+silicone）

1PRODUCT  APPEARANCE

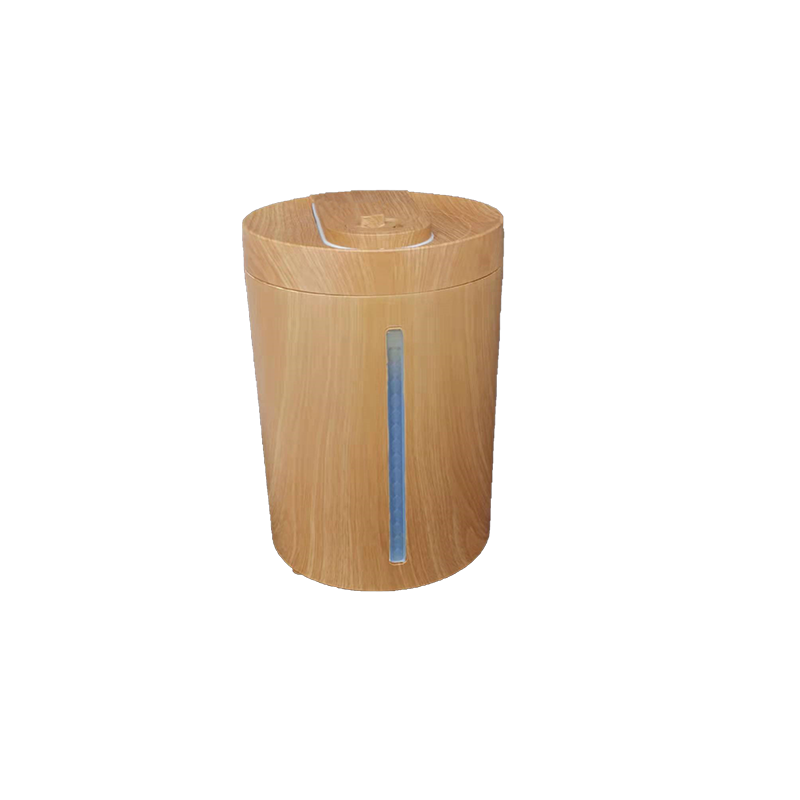

Product Appearance Pictures (Knob And Smart Touch)

2. SPECIFICATION

 Module No.

UHM-JS02

 Dimensions

Φ185*280mm

2.9

Box Size

190X190X285mm

Weight

802g

2.10

 Box Weight

380g

 Input

24V 1.7 or 2.4MHZ

2.11

Adapter / Cable Weight

85g

Power supply

18-20W

2.12

Tatal Weight with Adapter

887g

 OSD Language：

                          Chinese / English

2.13

 Apply Area

 about 20-30㎡

 Multi-language

2.14

 Max Time

  10h

 Power Source:

24V 650/750mA

2.15

Capacity

4226ml

Temperature

10～40℃

2.16

Spray Quantity

260-300ml/hr

 Funtion Explain

                                                                            Fill water tank with water,no higher than max water level line , do not fill water during using. (High temperature water is forbidden.)

                                                                                                                                                               Plug in the DC24V power plug on the back of the humidifier and turn on the power. At this time, the power indicator lights up (about two seconds), which means the humidifier is in the energized standby state.Touch the humidifier front power induction control switch, atomization start, in the high atomization continuous working state, the H indicator light, the buzzer rings;Touch the switch again, low atomization continuous working, humidifier in continuous working state, M indicator light, buzzer sound, continue to touch the switch, low atomization intermittent working, humidifier in working state of 20 seconds stop 10 seconds, L indicator light, buzzer sound; Press the touch switch again, then the humidifier stops.

                                                                              Long press (3 seconds) to touch the switch to turn on or off the indicator light in any atomization working state.

                                                 When there is no water in the water tank, the water shortage protection device will automatically disconnect the atomization circuit. At this time, the mist outlet will spray out without fog, the buzzer will ring for three times, the indicator light and the floodlight will flash for three times, and it will enter the standby state.

                                                                                     When the machine stops for water shortage or when the key stops, the fan will delay the work for 30 seconds and blow away the residual fog in the water tank.

                                                                                                                                   Spray cover can be 270 degrees of arbitrary rotation;There is an aromatherapy tray under the spray cover. Open the spray cover and add aromatherapy cotton pad to the tray, or directly drop the essential oil into the tray.The top cover is equipped with a handle, which is convenient to lift the cover and add water. It can also add water directly in the handle hole without lifting the cover.

                                                    The middle cylinder can be removed by the button in the atomizing area, which is convenient to clean the atomizing sheet.The whole working unit module is fastened and fixed by the bullet column, which can be taken out completely and is convenient for cleaning the water tank.

                                                             Light Press (1-2 seconds) once the color Light control button, the indicator Light on; Press the indicator light again to go off. And so on.

 Main Highlights：                                                                                                                                                                                                                                                                                                                                                           1.Original patent,PCBA overhead;                                                                                                                                                                                                                                 2. The original patent, atomization zone and water tank isolation, ensure a constant water level, high and low water mist quantity to maintain a constant;                                                                                                                        3. The original patent, the atomizing chamber is placed in the water tank, the water will not be out of control and spill out of the machine to cause the trouble of wetting the home, avoiding the disadvantages of the conventional water humidifier;                                                                                                                                                       4. The water tank with staff gauge can according to customer's need to make two transparent or opaque appearance, transparent water tank can be pervious to light;                                                                                                                                                                                                                                                                             5. According to customer needs, the humidifier can choose antibacterial silver (inorganic) and material, and can be suitable for essential oils;                                                                                                                                   6. According to customer needs, the tank can make different materials such as plastic, glass, pottery and porcelain, stainless steel, catering to the needs of high-end market;                                                                                                                                                                                                                                                                  7. According to customer needs, can form mechanical knobs, buttons, the common touch, LCD touch the four different styles;                                                                                   8. According to customer needs, high-end customized, made with colored lights, with infrared, remote sensing control, wireless control, with bluetooth music and other functions.

Power adapter(Necessary)

Cable Length

24V 650-750mA

Quick Start Guide

5.Packing

                                        Product+Accessories+Polybag+Color Box

 Carton Size

605X215X590mm

Outer Case

Qty/NW/NW

6PCS/7.6kg/9.1kg
20GP:2000PCS
40GP:4500PCS
40HQ:5220PCS
